StruBIM Design Shear Walls is a program with which users can design and check shear walls in accordance with the ACI 318-14 code.

"StruBIM Design Shear Walls" is integrated into the Open BIM workflow using the IFC standard.



Description

StruBIM Design Shear Walls


"StruBIM Design Shear Walls" is a program with which users can design and check shear walls in accordance with the ACI 318-14 code. This application is integrated into the Open BIM workflow.

"StruBIM Design Shear Walls" imports shear walls from the Open BIM project to which they are connected, as well as the analysis results. Using this data, users can design, edit and check the reinforcement of the different shear wall sections, and once the reinforcement design process has finished, they can generate and export the results. The program offers reinforcement description reports, check reports (summarised or extended) and a 3D view of results, displaying the resistant sections and interaction surfaces.

More information on the data "StruBIM Design Shear Walls" imports and exports to the BIM model to which it is connected, can be found in the Open BIM workflow section.



Starting off

StruBIM Design Shear Walls. Import assistant

StruBIM Design Shear Walls. Import assistant

To start a project on "StruBIM Design Shear Walls", users must first connect to an Open BIM project on the BIMserver.center platform.

"StruBIM Design Shear Walls" will read the files of the selected Open BIM project that have been included in the BIM model by CYPECAD (which must be exported previously by this program to the project).

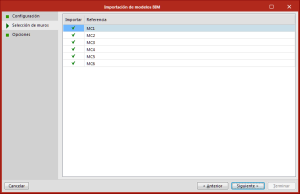

Reading of this data is selective and is done using an import assistant, where users select the shear walls to import. Other import options are also available:

  • Join adjacent segments
  • Generate reinforcement spans by floor
  • Structural system



StruBIM Design Shear Walls.  Import assistant

StruBIM Design Shear Walls. Workspace

StruBIM Design Shear Walls. Workspace

StruBIM Design Shear Walls. Workspace

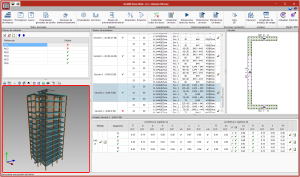

Workspace

Located at the top of the workspace is the toolbar.



Below the toolbar (in the top left of the workspace), is the list of shear walls that have been imported from the Open BIM project.









Information on the sections of each shear wall is displayed to the right of this list. Each section or span consists of a series of reinforcement segments that the program checks, designs and which users can edit. The section and span information is displayed onscreen for each selected wall.



To the right of the list of spans, the program displays the section of the wall with its reinforcement segments.







Shown along the bottom of the screen, is the table containing the checks of the selected reinforcement span. From this table, users can access the checks (for the normal requirements of the segments) and the detailed check reports.



The check editing windows allow users to edit the input data for the checks.



StruBIM Design Shear Walls. Workspace StruBIM Design Shear Walls. Workspace



StruBIM Design Shear Walls. Justification report



The checks that have been carried out by the program are shown in detail in the justification reports.



In the bottom left-hand corner of the screen, the program displays the 3D view of the project with all the models that have been imported.



StruBIM Design Shear Walls. Workspace



StruBIM Design Shear Walls. Toolbar

StruBIM Design Shear Walls. Toolbar

StruBIM Design Shear Walls. Toolbar

StruBIM Design Shear Walls. Toolbar

StruBIM Design Shear Walls. Toolbar StruBIM Design Shear Walls. Toolbar































Toolbar

The toolbar (located along the top of the screen) has a series of tools that are organised in different sections:





  • General data

    • Reinforcement diameters
      This tool displays a library that contains the available bars to define the reinforcement. Users must define the reference, diameter, section, internal bending diameters and a representation colour for each type of bar.


    • Concrete
      Users can edit and configure the type of concrete.


    • Steel
      Displays the steel library.


    • General design properties
      Using this tool, users can define the structural system of the walls, resistance reduction coefficients and geometric cover.


    • Design options
      Here, users can configure the design of the wall reinforcement.











  • Edit
    This section includes tool that can be used on the shear wall that is selected from the list. With these tools, users can edit the BIM model CYPECAD generated for "StruBIM Design Shear Walls" (geometry of the wall, forces, tilt angles and bracing levels).

    • Properties
      This tool allows users to edit the type of concrete, steel of the horizontal reinforcement and steel of the vertical reinforcement, and to select the structural system ("Special structural wall" or "Ordinary structural wall").

    • Sections
      This tool opens the "Sections" panel in which users can edit the geometry and reinforcement spans that make up each section of the wall.

    • Bracing levels
      Displays the elevations of the levels at which the wall is braced.

    • Tilts
      Shows the tilt angles of the wall.

    • Forces
      Displays the forces in their combinations that are acting on the wall.

      StruBIM Design Shear Walls. Toolbar



  • Checks
    The program will check and design each reinforcement span. The section of a reinforcement span consists of one or several wall segments. A check is carried out on the regular forces that are acting on the wall. For each segment, the program performs shear, minimum steel area, maximum spacing and edge element checks in accordance with chapters 11 and 18 of the ACI 318-14 code.

    • Check all walls
      Checks all the reinforcement spans of all the walls.

    • Check a wall
      Checks all the reinforcement spans of a wall.


  • Design
    Designs the selected reinforcement span, the selected wall or all the walls.

StruBIM Design Shear Walls. Toolbar

StruBIM Design Shear Walls. Toolbar









  • Resistant sections

    • 3D views

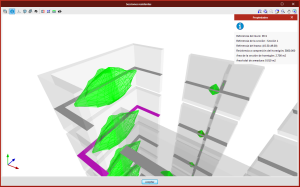

      The program provides a 3D results output so users may view the interaction diagrams and the resistant sections of the shear walls. Users can consult the data of these elements in this view.







  • Anchors
    The reinforcement each section requires can be exported from "StruBIM Design Shear Walls" to the BIM model. Attached to the reinforcement export is the data regarding the reinforcement options, and the anchorage and splice lengths that have been defined in this section. No checks are carried out on the anchorage and splice lengths. Therefore, the data that is defined here is used to generate the bars of the 3D reinforcement-modelling program "StruBIM Rebar".

    • Options
    • Anchorage and splice lengths


  • BIM model

    • Update
      Update the project with the changes of the BIM model.

    • Export
      Export the reinforcement of each span together with the reinforcement options, and anchorage and splice lengths to the Open BIM project.

    More information on the updating and exporting processes "StruBIM Design Shear Walls" carries out in the Open BIM workflow can be found in the next section (Open BIM Workflow).



Open BIM workflow

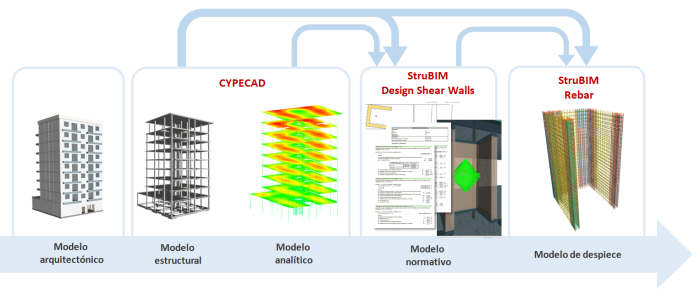

"StruBIM Design Shear Walls" is integrated into the Open BIM workflow using the IFC standard. The program currently exchanges the following information with the linked Open BIM project:

  • Imports

    • 3D view
      "StruBIM Design Shear Walls" displays the 3D view of all the models that are imported during the connection to the Open BIM project.

    • Shear walls
      "StruBIM Design Shear Walls" imports shear walls and their forces from the Open BIM project, to design their reinforcement.

      This information must have been generated and exported to the Open BIM project by a program such as CYPECAD.

  • Exports
    "StruBIM Design Shear Walls" generates and exports the following items to the Open BIM project:

    • Reinforcement description reports.
    • Check reports (summarised or extended).
    • A file in GLTF format with the 3D view of the results, where users can view the resistant sections and interaction surfaces.
    • Information "StruBIM Rebar" requires to carry out the BIM modelling of the designed reinforcement.



StruBIM Design Shear Walls. Open BIM workflow



More information

  • Program download
    BIMserver.center

  • Available languages
    English, Spanish.

  • License requirements
    To be able to use "StruBIM Design Shear Walls", the user license must include the necessary user permits for this program.
